JTFM-1100

Speed
10-100
m/min
Recommended Paper Thickness
100-500
g
Max. Paper Size
1080
mm
Max. Unwinding / Rewinding Diameter
1400
mm
Total Weight
8500
kg
General Power Consumption
75
kw
Overall Dimensions
9000×3230×2600
mm
Introduction

JTFM-1100 is an automatic roll-to-roll laminating machine developed for continuous lamination of paper rolls and flexible film materials.

The machine supports water-based glue, oil-based glue and thermal film lamination processes, allowing manufacturers to select suitable solutions according to production requirements.

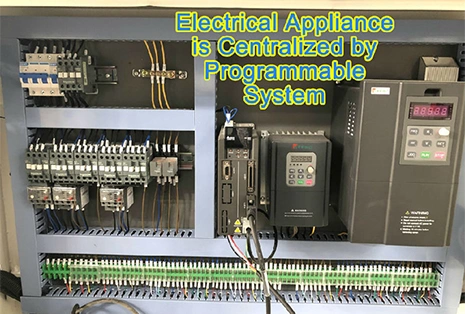

With PLC centralized control, automatic tension management, edge correction and integrated unwinding and rewinding systems, JTFM-1100 provides stable operation and consistent laminating quality for industrial production.

Functions & Features

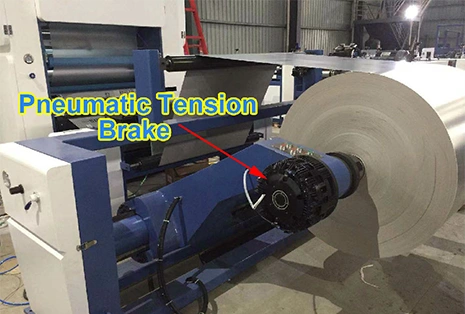

  • Automatic High Speed Unwinder: Adopt shaftless clamping, hydraulic lifting structure, tension controlled by air brake automatically/manually. Max. Unwinding diameter up to 1300mm.

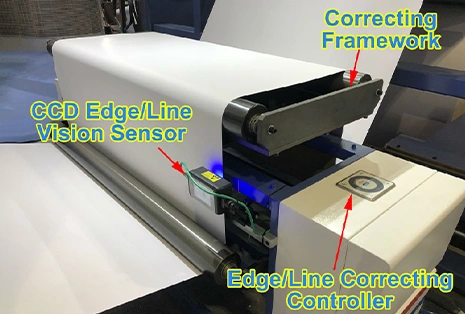

  • High Accuracy Edge/Line Correction System: Equipped with Ultrasonic Edge Correction Sensor and upmarket Edge/Line Position Controller, Photoelectric Tracking/ Stroke ±75mm, which can keep the edge of the roller aligned when unwinding and winding.
  • Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper breakage, and paper jamming.

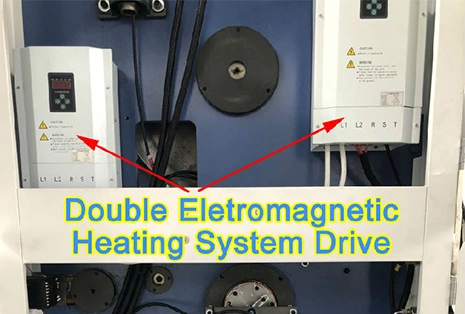

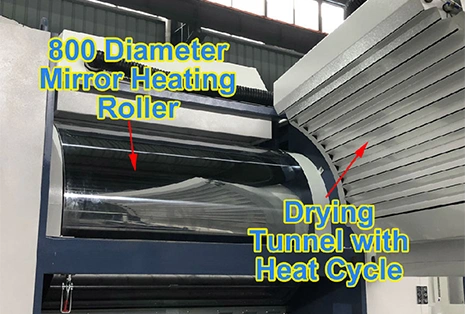

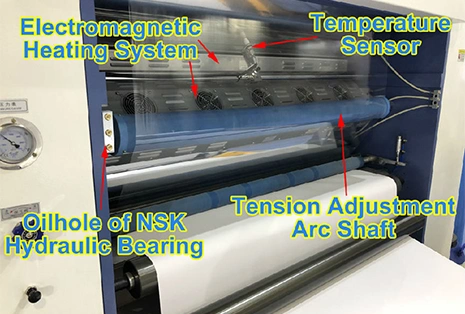

  • Drying And Heating System: The 800mm diameter large heating roller equipped with an electromagnetic heating device, at the same time supported by the Hot Air Cycle System, can realize high speed booting and heating in 5~10 minutes, 2 times faster than traditional oil heating device meanwhile save much power consumption.
  • Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high-quality lamination.

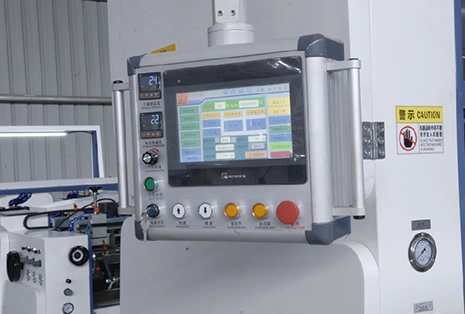

  • Man-machine Interface System: Equipped with a 10-inch color touch screen, easy and convenient to operate. The operator can view the machine’s working status at any time from the touch screen.

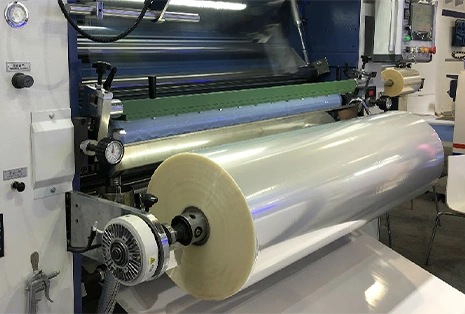

  • Air Shaft and Tension Control System: Adopt an air shaft, easy to load film and paper roll, accurate position by the graduation of the air shaft. At the same time, the intelligent tension system easily controls the tension of film and paper, increasing laminating performance.

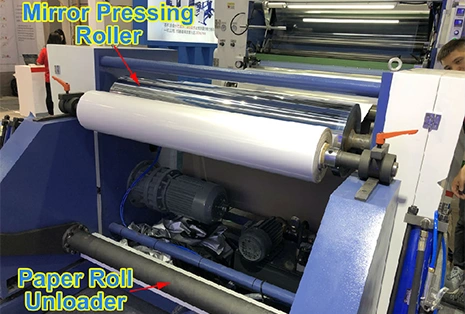

  • Rewinding System: AC vector frequency conversion control, matched with the unwinding system, the paper roll lift is driven by a double hydro-cylinder with a torque adjustment system. Mirror pressing roller ensures that the paper roll is rewound tightly. Max. Unwinding diameter up to 1300mm.
Standard & Optional Features
Standard Equipment:
  • Automatic unwinding unit
  • Deviation correction controller
  • Lamination unit
  • Automatic paper rewinding unit
Related products
Automatic Thermal Laminating Machine
ZWFM-1100B
Automatic Thermal Laminating Machine with Chain Knife
Automatic Waterbased Cold Laminating Machine
SZFM-1200
Automatic Waterbased Cold Laminating Machine
Manual Waterbaed Laminating Machine
SFM-750/1000/1200
Manual Waterbased Cold Laminating Machine
FAQ
Find Q&A related to customization andservices for gravure printing presses:
CONTACT US >
Q1:
What's your Lead Time
A
Regularly, within 30 days after payment of the deposit.
Q2:
Packaging?
A

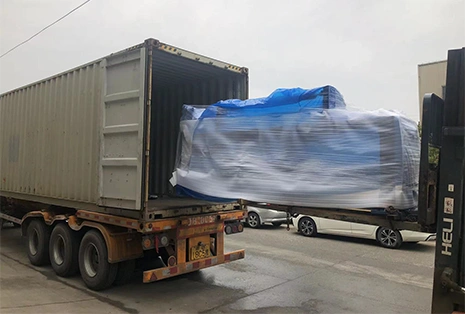

Adopts moisture-proof and shock-proof packaging, which is suitable for long-distance road transportation and various types of weather conditions.
Q3:
How about After-Sales Service?
A
We provide a 1-year warranty period. During the period, we supply the spare parts for free for replacement in case of any quality problem. And you will enjoy lifetime technical support from our professional after-sales team.
Q4:
Do you have an engineer available for installation, training, and test to my factory?
A
Don't worry, of course we have. All the machines have been adjusted and tested well in our workshop. But if you require, our engineer will come to your factory for technical support. You just pay for the VISA, round air tickets, salary of 100 USD/day, and provide food and accommodation upon final confirmation.
Q5:
Any certifications？
A
Yes, all the machines have passed ISO9001 and CE certification. And we have several patents about the chain knife, heating roller, and powder cleaning.
