SLFM-1100

Speed
40
m/min
Recommended Paper Thickness
100-500
g
Max. Paper Size
1000×1050
mm
Min. Paper Size
285×350
mm
Total Weight
3500
kg
General Power Consumption
55
kw
Overall Dimensions
6000×2000×2200
mm
Introduction

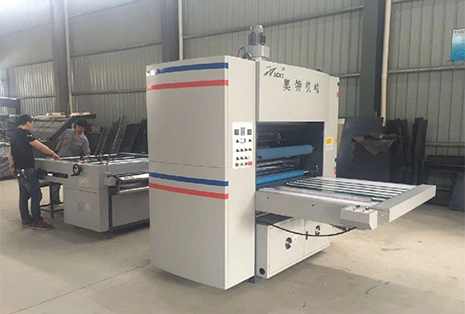

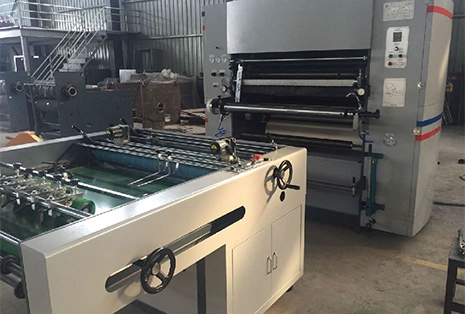

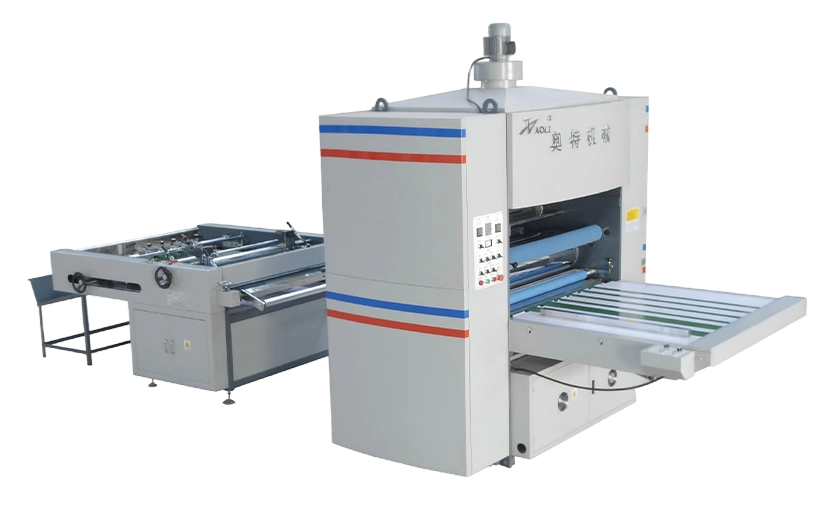

  The SLFM-1100 is a semi automatic vertical laminating machine developed for printing houses and packaging manufacturers requiring stable film lamination with simple operation and reliable production performance.

The machine supports water-based glue lamination and thermal film lamination processes. The large diameter heating roller, hot air circulation system and hydraulic pressure system provide consistent bonding quality across different paper and film combinations.

Equipped with servo-controlled sheet positioning, air shaft film loading and intelligent tension control, the SLFM-1100 helps maintain accurate film alignment and stable production during continuous operation.

Compared with fully automatic laminating machines, the SLFM-1100 provides a more economical solution for customers who need industrial laminating capability with lower investment and easier operation.

Functions & Features
  • Drying And Heating System: Adopt a 600mm diameter large heating roller equipped with a built-in Oil Conduction Heating System and Hot Air Cycle System, which can realize high-speed booting and heating, and can save much power consumption.
  • High Accuracy Lap Control: Servo-controlled lap within ±2mm, high accuracy front lay and pneumatic side lay regulator ensure accurate and stable position.
  • Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high-quality lamination.
  • Man-machine Interface System: Equipped with a color touch screen, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.
  • Air Shaft and Tension Control System: Adopt an air shaft, easy to load film, accurate film position by the graduation of the air shaft. At the same time, the intelligent tension system makes it easy to control the tension of the film, increasing the laminating performance.
  • Slitting System: Equipped with a double cutter, coordinated with pneumatic pull and separating device, can slit BOPP and OPP film perfectly.
Related products

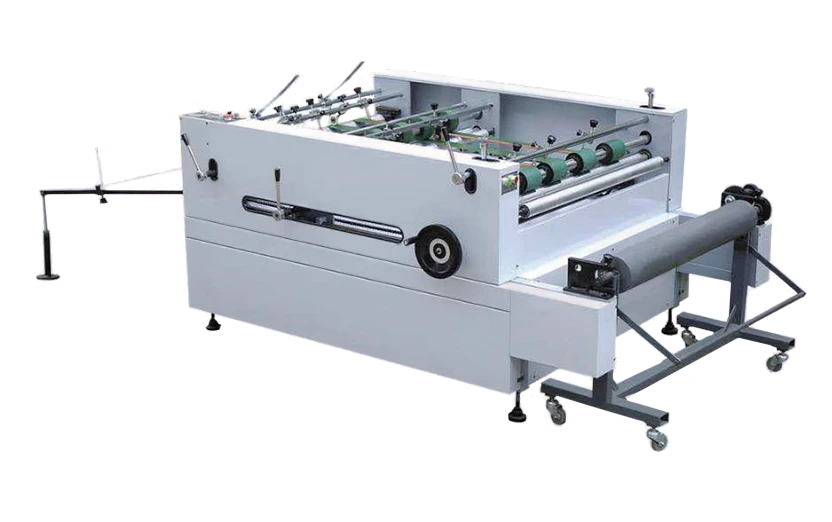

Sheet Separating Machine
LMFQ-1000/1200
Sheet Separating Machine for Laminated Paper

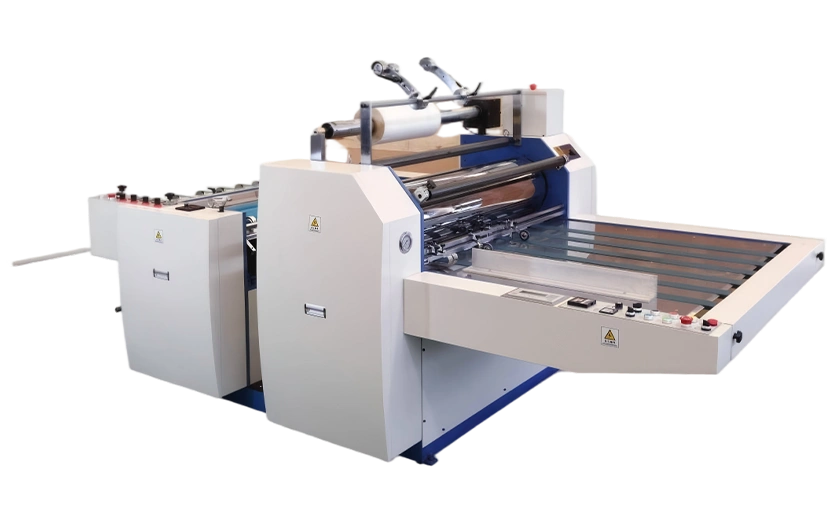

Manual Thermal Laminating Machine
SF-720/920/1100
Semi Automatic Thermal Laminating Machine
FAQ
Find Q&A related to customization andservices for gravure printing presses:
CONTACT US >
Q1:
What's your Lead Time
A
Regularly, within 30 days after payment of the deposit.
Q2:
Packaging?
A

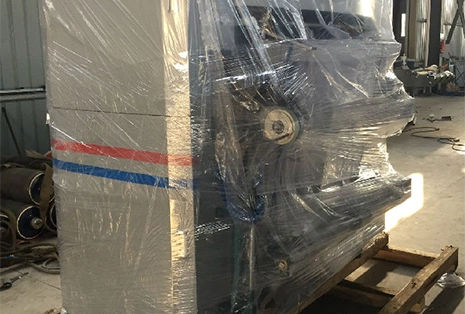

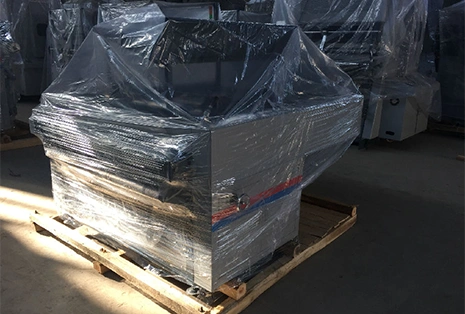

Adopts moisture-proof and shock-proof packaging, which is suitable for long-distance road transportation and various types of weather conditions.
Q3:
How about After-Sales Service?
A
We provide a 1-year warranty period. During the period, we supply the spare parts for free for replacement in case of any quality problem. And you will enjoy lifetime technical support from our professional after-sales team.
Q4:
Do you have an engineer available for installation, training, and test to my factory?
A
Don't worry, of course we have. All the machines have been adjusted and tested well in our workshop. But if you require, our engineer will come to your factory for technical support. You just pay for the VISA, round air tickets, salary of 80 USD/day, and provide food and accommodation upon final confirmation.
Q5:
Any certifications？
A
Yes, all the machines have passed ISO9001 and CE certification. And we have several patents about the chain knife, heating roller, and powder cleaning.
