Thermal Laminating Machine

AOTE automatic thermal laminating machine is specifically designed for thermal (pre-coated) film lamination. It realizes the whole line automation of paper feeding, film laminating, slitting, paper stacking and temperature control. The laminating cylinder adopts built-in electromagnetic heating with fast heating speed and stable temperature — no glue coating needed, simple and easy to use, low maintenance.

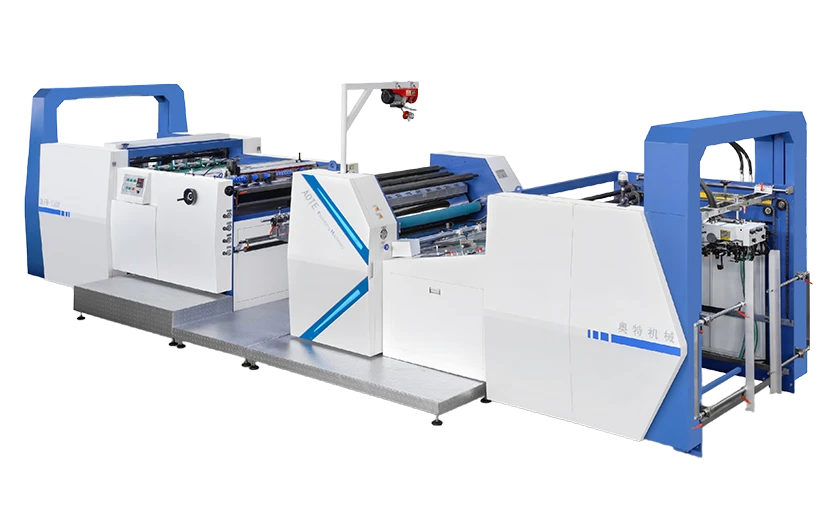

ZWFM-1100A

Automatic Thermal Laminating Machine with Disc Cutter >>

(Disc Cutter) (BOPP/PVC)

Designed for BOPP and standard thermal film applications, ZWFM-1100A combines automatic feeding, disc knife slitting, stable heating control and automatic stacking to provide reliable laminating performance for commercial printing and packaging production.

10-100 m/min

Speed

100-500 g

Paper thickness

1080×1000 mm

Max. Paper Size

350×285 mm

Min. Paper Size

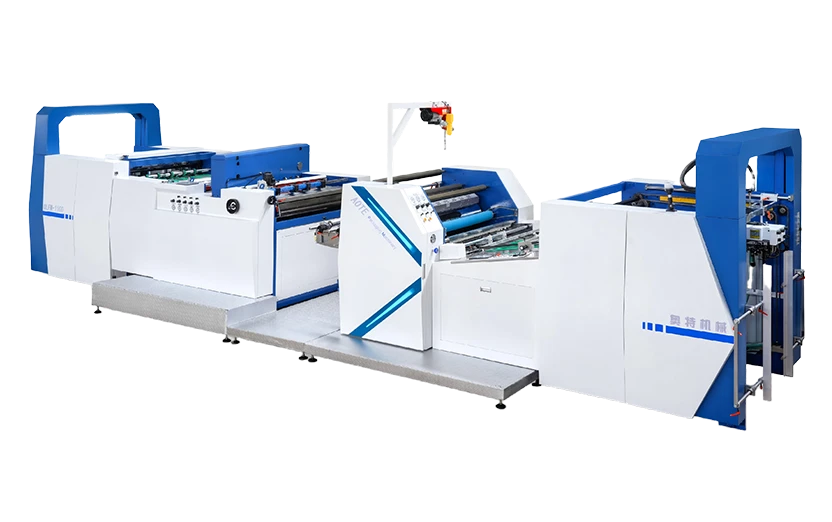

ZWFM-1100B

Automatic Thermal Laminating Machine with Chain Knife >>

(Disc Cutter + Chain Knife Cutter) (BOPP/PVC/PET/Special Film...)

Designed for BOPP, PET, PVC and specialty thermal films, ZWFM-1100B combines disc and chain knife cutting systems with automatic feeding, powder cleaning and stacking to deliver stable lamination performance for commercial printing and packaging applications.

10-100 m/min

Speed

100-500 g

Paper thickness

1080×1000 mm

Max. Paper Size

350×285 mm

Min. Paper Size

SF-720/920/1100

Semi Automatic Thermal Laminating Machine >>

(BOPP)

SF series semi automatic thermal laminating machine is designed for commercial printing and packaging applications requiring reliable film lamination with flexible operation. Equipped with stable feeding, temperature-controlled heating roller and convenient film loading system, it provides an economical solution for BOPP thermal film lamination.

40 m/min

Speed

100-500 g

Paper thickness

1060×1100 mm

Max. Paper Size

3.7 kw

Motor Power

FAQ

Find Q&A related to customization andservices for laminating solutions:

Q1:

Does this machine require glue coating?

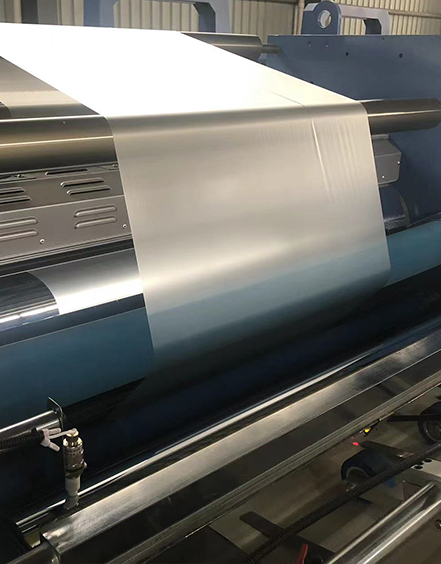

No. It is specially designed for pre-coated (thermal) film. Simply load the film and paper, and the machine bonds them with heat and pressure — no glue mixing, no roller cleaning.

Q2:

What types of film can be used?

It works with BOPP, CPP, PET, and metalized thermal films. For PET and metalized films, we recommend the chain knife and hot knife slitting option for a clean cut without tail film.

Q3:

Is this machine suitable for short-run jobs? Is it easy to operate?

Very easy. The machine with touch screen allow quick job changes. Electromagnetic heating reaches working temperature in 3 minutes, making it ideal for frequent changeovers.

Ready to upgrade your laminating machine?

Get a free line design and quotation within 24 hours.
